Automatic High Speed flute Laminating machine

Automatic High Speed flute Laminating machine

    Payment Type: L/C,T/T,Western Union
    Terms of Trade: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 30 Days
    Packaging: Wooden packing
    Productivity: 35sets/month
    Brand: Innovo
    Transportation: Ocean
    Place of Origin: China
    Supply Ability: 30sets/month
    Certificate: ISO

Basic Info

Model No.: FM1310

Product Description

Automatic High Speed Laminator

87


High Speed flute Laminating machine Characteristics:

Two function : Two Paperboard laminating, one paper and one corrugated paper laminating dual purpose machine

1. To achieve high efficient and stable operation, main parts of equipment all imported

2. Top sheet feeding mechanism: equipped with high speed auto dedicated feeder, both paper lifting and feeding nozzle can freely adjust angle to the paper, to ensure that whether thick or thin paper can be delivered rapidly and smoothly

3. Top Sheet lifting table: adopting large ratio of high strength turbine reducer to make sure the instant speed stability

4. Top sheet pilling table: Unique idea E-type with double gaps device design can allow sheet to be pushed directly by hand forklift, shorten paper stacking time and improve the efficiency, and also can be installed the orbit type auxiliary pile board

5. High Speed flute Laminating machine Bottom paper drive: Use imported Servo motor electric controlling system to guarantee high sensitivity and high speed operation

6. Bottom paper feeding: Patented technology to ensure corrugate and cardboard goes out smoothly and simple operation

7. Glue roller: Stainless Steel roller, never rust, after narrowly grinding, guaranteed the minimum amount glue coated evenly

8. High Speed flute Laminating machine Glue system: Automatic glue complements system, automatic replenishment of losses glue in the process of laminate, and also equipped with glue recycling system

9. Front and back positioning: Unique creation of front gauge positioning system, take advantage of the speed difference of paper feeding and front running, make sure the paper tracking the front gauge and accurately positioning

10. Side positioning: left and right side synchronous block complete the accurate positioning

11. Transmission: With imported belt drive, ensure the drive accurate positioning

12. High Speed flute Laminating machine Operating system: Using man-machine interface and PLC combination, display all the information, such as warning, error detect, failures, and operating speed, etc. on the screen at a glance

13. High Speed flute Laminating machine Electrical system: Designed in the accordance with European CE requirement, ensure machine stability, high efficiency and low failure


High Speed flute Laminating machine Parts description:


Top sheet feeding mechanism: equipped with high speed auto dedicated feeder, both paper lifting and feeding nozzle can freely adjust angle to the paper, to ensure that whether thick or thin paper can be delivered rapidly and smoothly.


Bottom paper feeding: Use imported Servo motor electric controlling system, with Japan NITTA suction belt to make suction power inverter, and belt cleaned by water roller; patented technology to ensure corrugate and cardboard goes out smoothly and simple operation

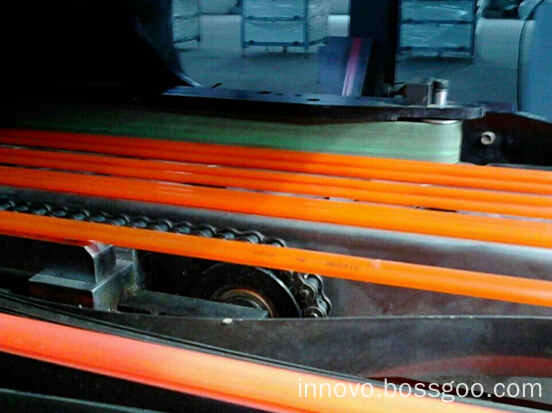

Front and back positioning: Paper adsorbed by the fan on the conveyor belt, take advantage of the speed difference of paper feeding and front running, make sure the paper tracking the front gauge and accurately positioning



Side positioning: left and right side synchronous block complete the accurate positioning, both top sheet and bottom paper are equipped with accurate positioning device on left and right.


Glue roller: Stainless steel roller, never rust, after narrowly grinding, guaranteed the minimum amount glue coated evenly. Down roller be cleaned by water roller.


Transmission: With imported double teeth belt drive and Switzerland ROSTA tension device ensure the drive accurate, Stable and low noisy.



Mainframe wallboard are all large-scale machining center once processed, the reasonable design of roller installation position, convenient adjustment and maintenance, the host drive bearings are imported

Electrical system: Designed in the accordance with European CE requirement, ensure machine stability, high efficiency and low failure. Using man-machine interface and PLC combination, display all the information, such as warning, error detect, failures, and operating speed, etc. on the screen at a glance.


Main technical parameters:

Machine Model:

FM1307

FM1310

Maximum paper:

Width 1300mm×length 700mm

Width 1300mm×length1000mm

Minimum paper:

Width 500mm×length 300mm

Width 500mm×length 300mm

Down paper thickness:

300g-8mm thickness

300g-8mm thickness

Surface paper thickness:

150g-700g

150g-700g

Maximum speed:

10000 pcs/h

7800pcs/h

Fitting accuracy:

±0.5mm (standard flat paper)

Apply glue:

resin glue, starch paper jam glue, etc. (PH6-8 use bonding glue)

Weight:

6500Kg

Power supply:

380VAC/3P

Power:

20Kw to work 13Kw

Applicable paper:

Thin paper, cardboard, coated paper, gray cardboard, thick cardboard, etc.

Applicable corrugated:

High strength formal single A, B, E, F three, five etc. mounted paper Lenz
